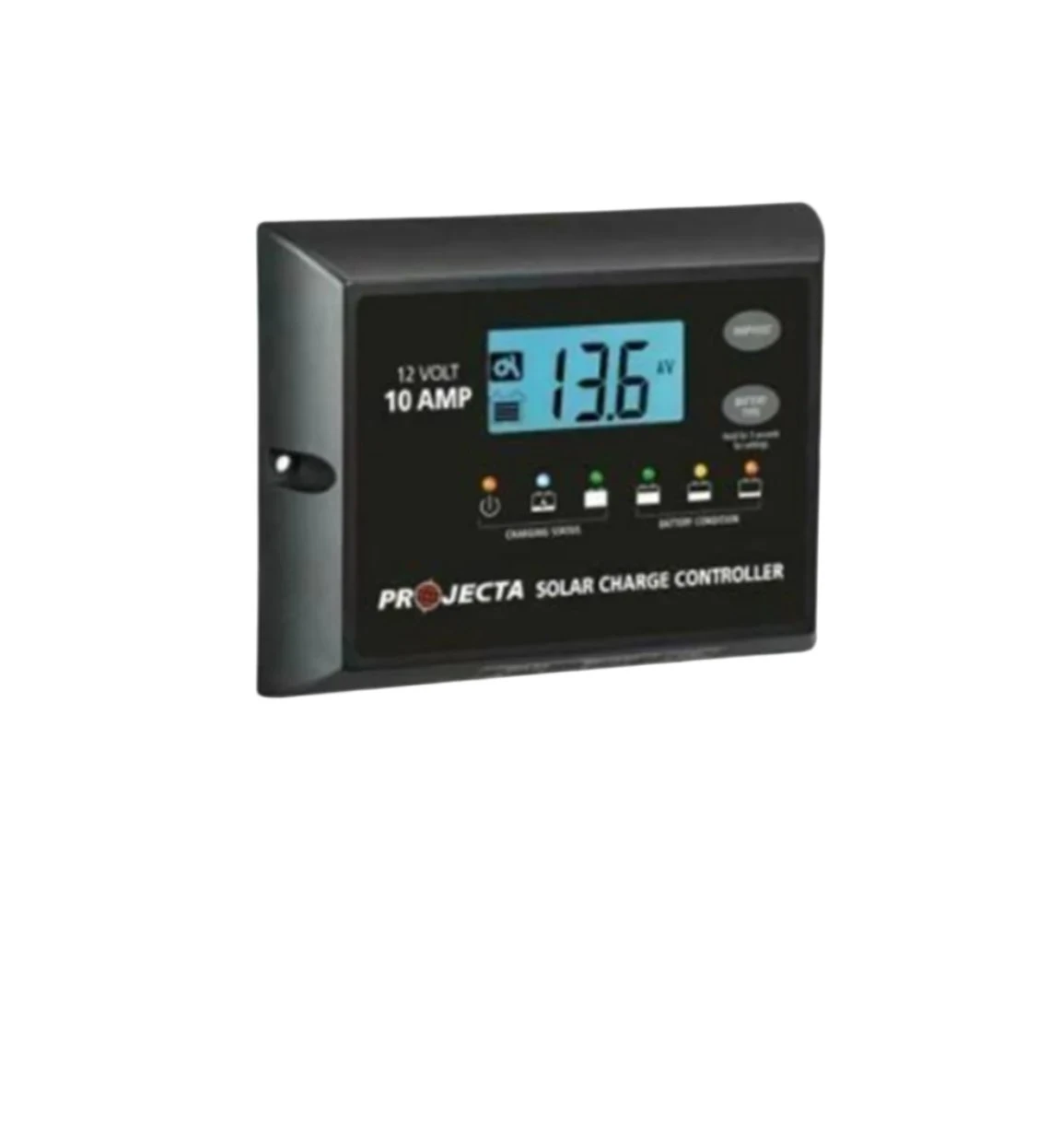

PROJECTA SC110 SOLAR CONTROLLER 4 STAGE AUTOMATIC 12V 10A 120W CARAVAN RV

PROJECTA SC110 SOLAR CONTROLLER 4 STAGE AUTOMATIC 12V 10A 120W CARAVAN RV

PART NO. SC110
Packed with features, this sophisticated solar controller is ideal for panels capable of producing up to 10 Amps. Delivering a comprehensive 4 stage charging process and the ability to tailor its settings to best suit your battery type.

FEATURES

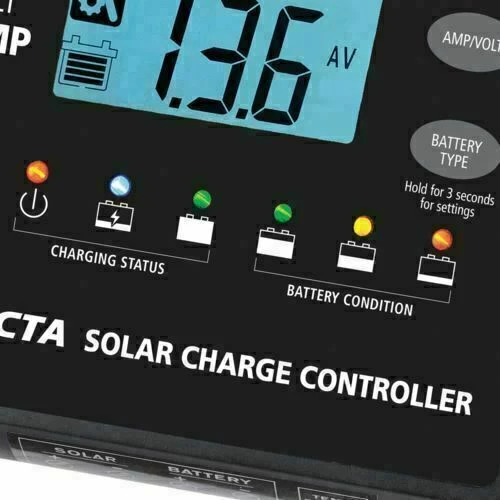

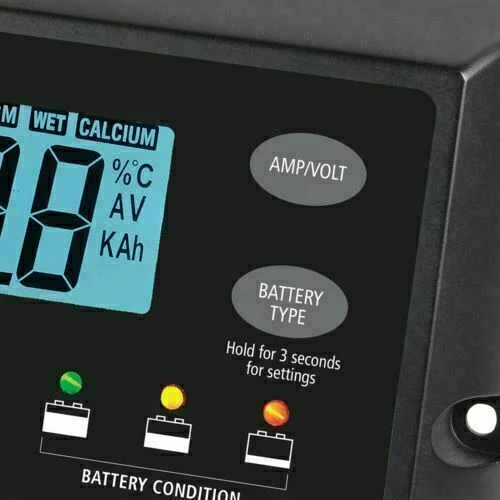

Digital L.E.D screen
Displays battery voltage, charging current, charging capacity, fault codes and more
L.E.D charge indicator
Displays quick reference to charge status and battery condition
Multi-chemistry
Set the charging profile to suit battery chemistry type: Wet, Calcium, AGM or Gel
Sealed electronics
Conformal coated circuit board and plated terminals protect controller from the elements
Temperature sensor
Built-in sensor enables unit to optimise charge performance and offer additional protection. Optional sensor probe also available

SPECIFICATIONS
PART NO: SC110

INPUT: 12V

MAX INPUT: 25VDC, 10A

MAX CHARGE: 10A

MAX PANEL SIZE: 120W

BATTERY: 12V

CHARGE CONTROL

4 Stage Charging
Bulk:
Absorption:

Equalisation:
Float:
Gel:
AGM:
Wet:
Calcium: 12V
14.0V
14.1V
14.4V
14.7V
14.9V
15.5V
13.6V
APPROVAL: EMC

IP RATING: IP22
